# Hardware Setup

## Welcome to your Hardware!

You are now part of a movement to truly take our privacy back. Your hardware gives you instant access to a secure, private connection for everyday browsing. For those who want to go further, it also unlocks the ability to support the network and earn crypto by contributing bandwidth.&#x20;

Choose the option for you and get started with your setup now, or scroll further to find out more about the device!&#x20;

### Get setup with a private Wi-Fi connection in under a minute:

{% content-ref url="hardware/setup-guides/router-mode" %}
[router-mode](https://docs.anyone.io/hardware/setup-guides/router-mode)
{% endcontent-ref %}

### Protect and earn crypto tokens by contributing to the network (full setup).

{% content-ref url="hardware/setup-guides/relay-mode" %}
[relay-mode](https://docs.anyone.io/hardware/setup-guides/relay-mode)
{% endcontent-ref %}

&#x20;

## What's in the box?

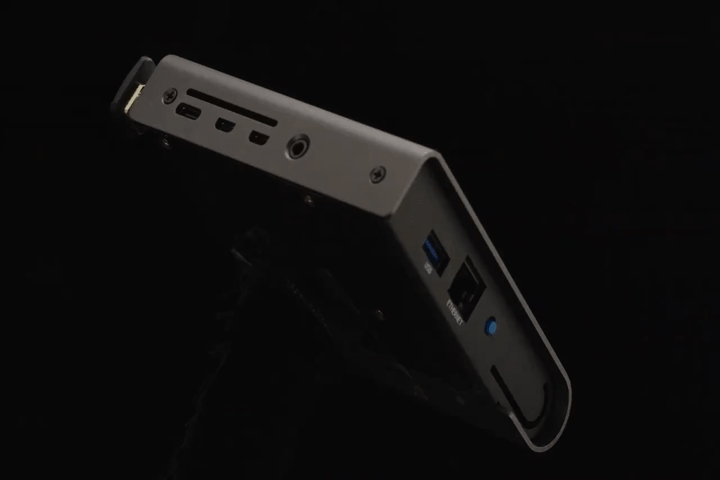

* [ ] **Anyone Router Device**
* [ ] USB-C Power Cable
* [ ] USB Wi‑Fi adapter for dual-band connection
* [ ] USB thumb drive for hardware updates
* [ ] Quick‑start guide & sticker

<div align="left"><figure><img src="https://3545050655-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAA9P3lN6X0LnMGWCOpyt%2Fuploads%2FFeCptmgc6SVOYDT4XQ8l%2Fimage.png?alt=media&#x26;token=77638713-7cc8-4286-8837-d9d4845f4a6d" alt="" width="563"><figcaption></figcaption></figure> <figure><img src="https://3545050655-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAA9P3lN6X0LnMGWCOpyt%2Fuploads%2F7ngtJZN7fBf7fmuWroaz%2Fimage.png?alt=media&#x26;token=7b21d381-ce46-4994-9f57-5689ea119704" alt="" width="563"><figcaption></figcaption></figure></div>

To find out more about the device - see [overview](https://docs.anyone.io/hardware/overview "mention")!

## QuickStart - Router Mode Setup (3 minute guide)

Follow these simple steps to set up your Anyone Router in **Router Mode.** Perfect for sharing your home network traffic securely. A detailed description can be found at [Router Mode Installation](https://docs.anyone.io/hardware/setup-guides/router-mode).

***

### Power up & Enter Setup Mode

{% hint style="success" %}

1. **Connect the power cable to the back of the device**
2. **Wait for lights to stabilize (blue swirling -> red steady).**
3. **Hold the blue button down for 3s to enable the Wi-Fi captive portal.**
   {% endhint %}

![](https://3545050655-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAA9P3lN6X0LnMGWCOpyt%2Fuploads%2F5Qx9lSlIRUddTlTFv9y8%2Fimage.png?alt=media\&token=5405a13d-cf7d-44fc-8605-4390e924bc31)    ![](https://3545050655-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAA9P3lN6X0LnMGWCOpyt%2Fuploads%2F2BH9yVhPOFWqh9OTHZNG%2Fimage.png?alt=media\&token=35747db5-a69d-4eac-9ebe-9cecbad543b2)\
Use a computer, battery pack, or power adapter to power your device, minimum 15W.

***

### Connect & Launch Wizard

{% hint style="success" %}
**Find the new W-iFi network:**

`relayup_<serialID>`

**Password:**

`anyone.io`

![](https://3545050655-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAA9P3lN6X0LnMGWCOpyt%2Fuploads%2FNJowNEs6Ge9sCIjSffuZ%2Fimage.png?alt=media\&token=f743602a-8d94-4dce-b245-714a3bf24b33)
{% endhint %}

The captive portal opens up automatically. \
\
If not open a browser to:\
[http://relayup.local](http://relayup.local/)\
or [http://10.42.0.1](http://10.42.0.1/)

{% hint style="success" %}
**Accept Terms, log in with default password `admin`, and continue.**

![](https://3545050655-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAA9P3lN6X0LnMGWCOpyt%2Fuploads%2Fs2jQGgse3WpXRYIaLB41%2Fimage.png?alt=media\&token=d92a6d57-8070-40a3-824a-e06b5f56fde8)    ![](https://3545050655-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAA9P3lN6X0LnMGWCOpyt%2Fuploads%2FhLfkeqIWo8qZYAtjbeQk%2Fimage.png?alt=media\&token=4dd27918-a77f-4a14-8603-04a3dbe362cb)
{% endhint %}

***

### Choose Router mode

{% hint style="success" %}
**In the wizard:**

* Select **Router Only Setup** (no relay traffic)
* Choose your uplink (wired or Wi-Fi)
  * Optional: plug in USB Wi-Fi adapter for dual-band hotspot capability

![](https://3545050655-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAA9P3lN6X0LnMGWCOpyt%2Fuploads%2FFLx62McgmhfcYw4j4Ux8%2Fimage.png?alt=media\&token=a499f2a3-30f6-4bb6-87e9-93deb7aadfb0)    ![](https://3545050655-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAA9P3lN6X0LnMGWCOpyt%2Fuploads%2F6LUQ66OZ1Vakzx4VV6kv%2Fimage.png?alt=media\&token=387022ca-f225-4560-96b3-4f7f4c70303f)&#x20;
{% endhint %}

{% hint style="success" %}
Set up your own hotspot name and password

![](https://3545050655-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FAA9P3lN6X0LnMGWCOpyt%2Fuploads%2F5k47yJEWC0Lwp4Mt0HIu%2Fimage.png?alt=media\&token=9af29246-6379-433b-8b50-a17719fb7886)
{% endhint %}

***

### What happens now

* The device installs settings and reboots automatically
* LED lights turn green indicating a successful uplink

Connect any client device to the router's hotspot to have its internet traffic routed through Anyone’s secure network

LED pulsing <mark style="color:blue;">Anon Blue</mark> = Router Running

{% hint style="info" %}
For home traffic, install the [**Anyone Browser**](https://docs.anyone.io/connect/ios#anyone-browser-app-store) or the **Anyone Desktop VPN** (coming soon) on your client devices
{% endhint %}

***

### Watch the setup in action

{% embed url="<https://www.youtube.com/embed/r81ls2N9guM?si=AOArawI2s4W-_7Tt>" %}

* **Follow the** [**Router Mode Steps**](#quickstart-router-mode-setup-3-minute-guide) from above to **get started instantly!**
* Or choose the [**Relay Mode**](#optional-relay-mode-advanced) to **contribute your bandwidth** while earning **contribution rewards**.

***

### After Setup - Next Steps

Head to the Control panel at [https://relayup.local](https://relayup.local/) or the shown IP from above

{% hint style="danger" %}
**IMPORTANT:**\
[Change your admin password](https://docs.anyone.io/setup-guides/controlpanel#change-password)
{% endhint %}

See the [Control Panel Walkthrough](https://docs.anyone.io/hardware/setup-guides/controlpanel) for full details of all the available settings.&#x20;

{% content-ref url="hardware/overview" %}
[overview](https://docs.anyone.io/hardware/overview)
{% endcontent-ref %}

***

***

### Relay Mode (Advanced)

Running a relay with an Anyone hardware device is the easiest way to support the network and start earning $ANYONE tokens. You’ll contribute your home internet bandwidth while benefiting from a special rewards pool reserved just for hardware relays.

Ready to get started? Follow the [Relay Setup Guide →](https://docs.anyone.io/hardware/setup-guides/relay-mode)

***

<div align="left"><figure><img src="https://content.gitbook.com/content/AA9P3lN6X0LnMGWCOpyt/blobs/mPmn92NrnE8W3fBm4ID9/Anyone_hw.gif" alt="" width="563"><figcaption></figcaption></figure></div>


---
