# Overview & Specifications

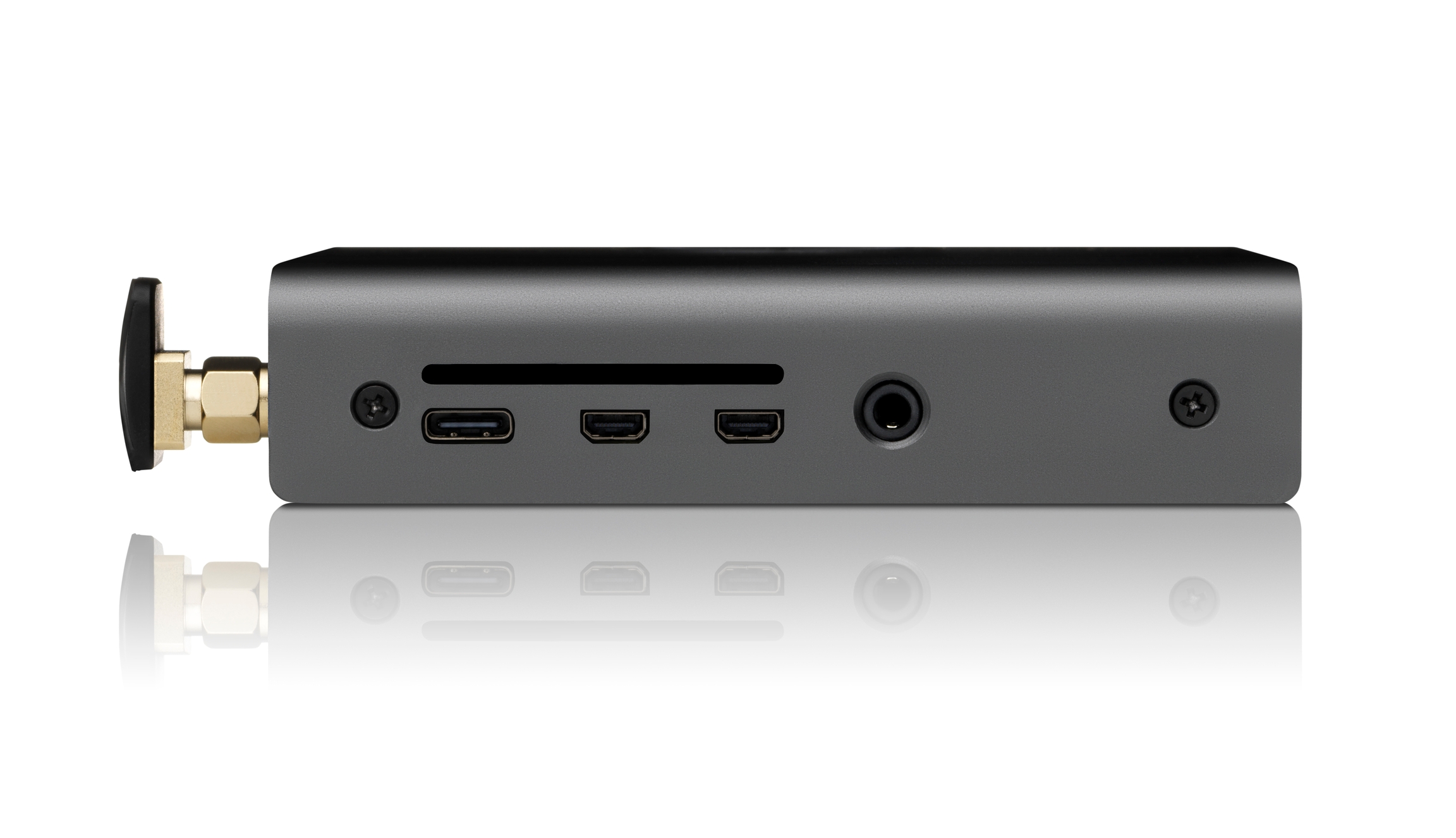

## Introducing the **Anyone Router** <a href="#introducing-the-ator-relay" id="introducing-the-ator-relay"></a>

A robust hardware solution designed to seamlessly integrate into your digital setup. Equipped with a **dual-Cortex 1.5GHz CPU**, **4GB LPDDR4 RAM**, and **64GB eMMC Storage**, this device offers reliability and performance for a variety of tasks. With features like **1000 Mbps Ethernet**, **WiFi 802.11 n/ac** connectivity, and **USB A OTG port**, it ensures seamless data transfer and versatile connectivity options.

<div align="left"><figure><picture><source srcset="/files/7H4VADO286lKAi34yESq" media="(prefers-color-scheme: dark)"><img src="/files/nJhp0GmNPmer7I1nwOSJ" alt="" width="375"></picture><figcaption></figcaption></figure></div>

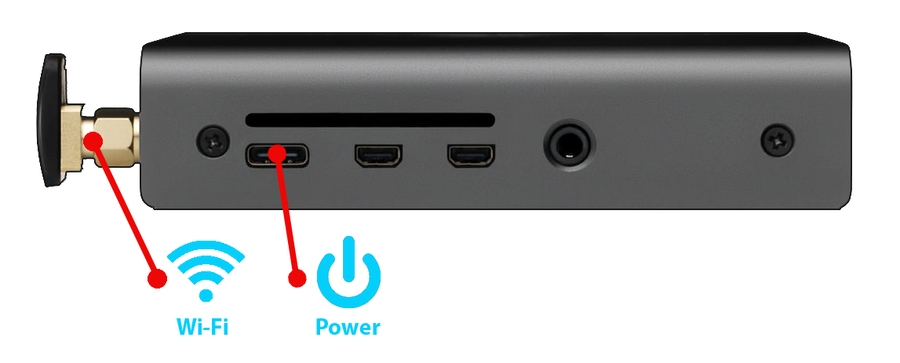

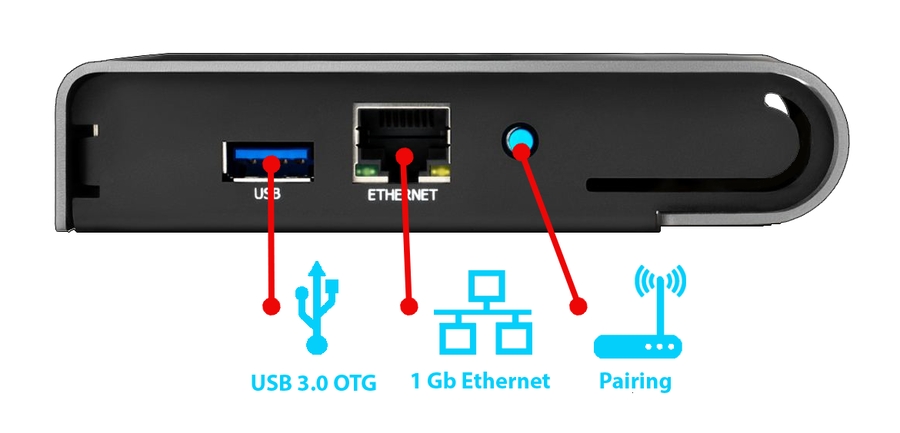

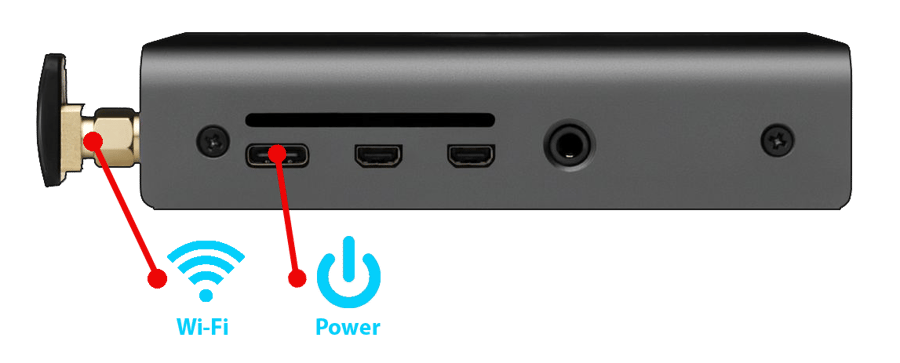

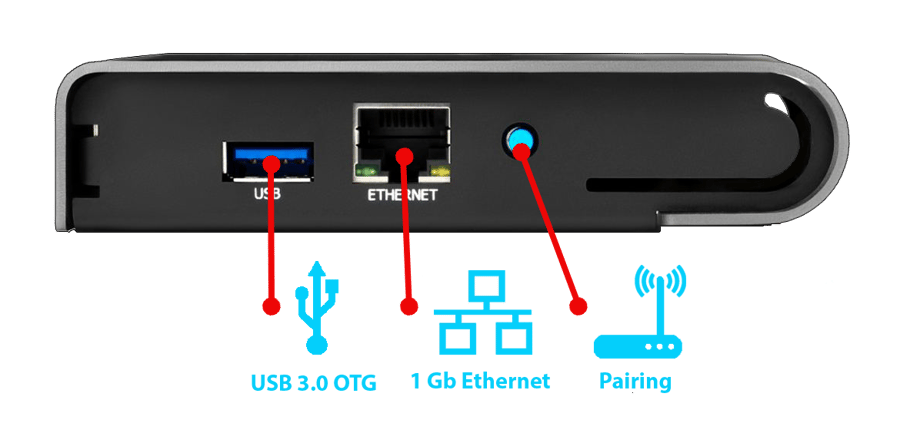

### Input/Output Interface <a href="#input-output-interface" id="input-output-interface"></a>

![](/files/PcibOpBmoXnPc9f52sMS)![](/files/aGBo1iu5ZFxLjnHZWi8q)

### Specifications

| **Processor**                                                                                                                          | **GPU**                                                                                     | **Encryption**                                                    |
| -------------------------------------------------------------------------------------------------------------------------------------- | ------------------------------------------------------------------------------------------- | ----------------------------------------------------------------- |
| Rockchip RK3399-T, Hexa-core 64-bit SOC Dual Cortex®-A72, frequency 1.5-GHz with quad Cortex® A53, 1Ghz with separate NEON coprocessor | Arm Mali™ T860MP4 GPU, OpenGL ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan 1.0, Open CL 1.1 1.2, DX11 | Cryptographic Co-Processor with Secure Hardware-Based Key Storage |
| **Memory**                                                                                                                             | **Storage**                                                                                 | **Bluetooth**                                                     |
| 4GB LPDDR4-3200 SDRAM                                                                                                                  | 32GB NAND Flash (up to 128GB)                                                               | Bluetooth 5.0, BLE                                                |
| **USB**                                                                                                                                | **Wireless**                                                                                | **LAN**                                                           |
| 1x USB 3.0 OTG                                                                                                                         | 2.4 GHz & 5.0 GHz IEEE 802.11ac wireless                                                    | 1x Gigabit Ethernet                                               |
| **Power**                                                                                                                              | **Dimensions**                                                                              |                                                                   |
| Power adapter with USB type C port minimum (5V3A) 15W                                                                                  | 104.3mm x 109.6mm x 24.22mm                                                                 |                                                                   |

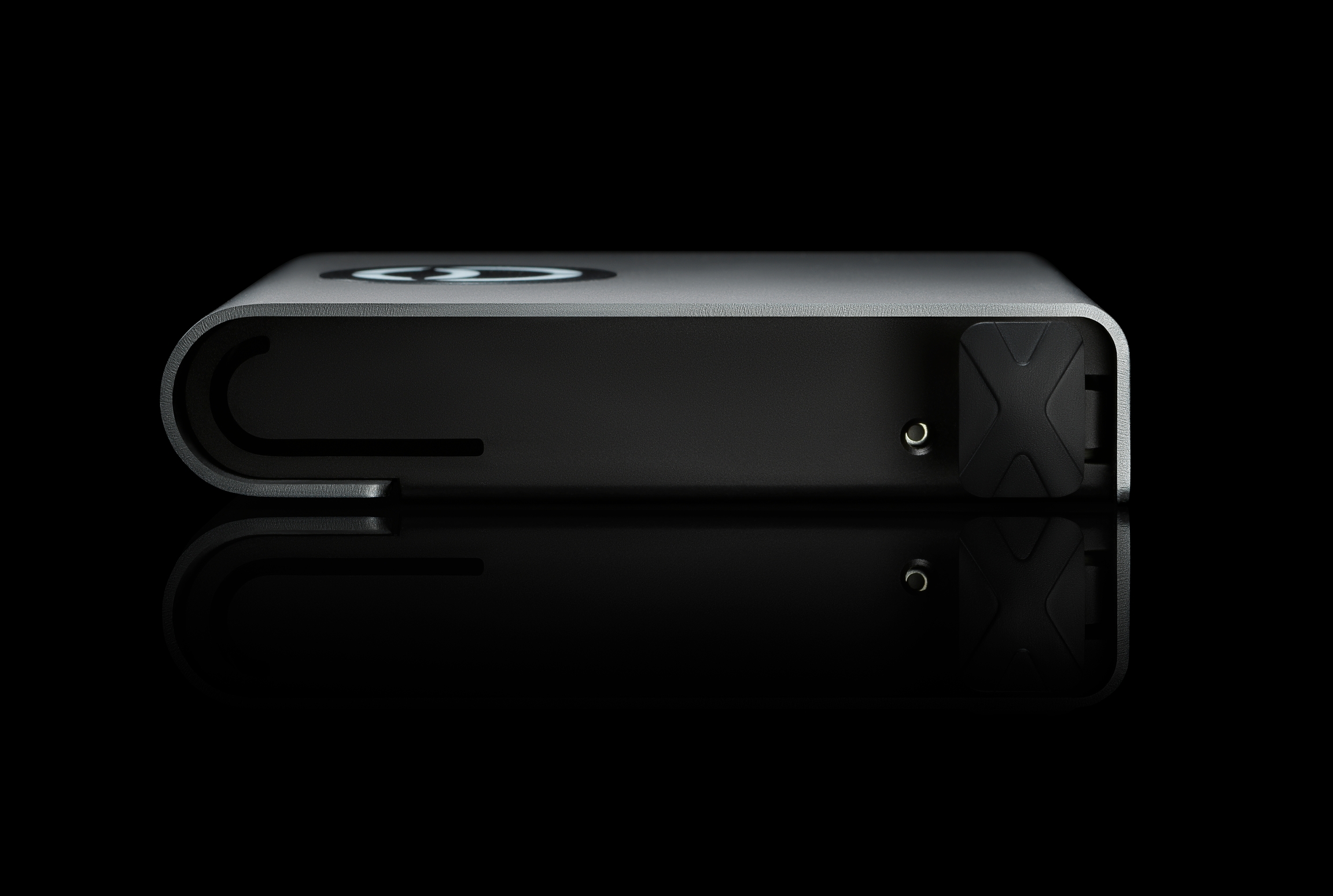

Security is a top priority with the **Anyone Relay**, featuring an **encryption chip** and **CryptoAuth key generation** to protect your data. Its sleek anodized aluminum build not only enhances durability but also allows for easy wall-mounting. Beyond its hardware capabilities, the **Anyone Relay** plays a crucial role in the **Anyone network**, enabling users to contribute bandwidth and computing power effortlessly. Moreover, it will be able to route home internet traffic through the **Anyone network**, ensuring enhanced security and access to anonymous services. With its advanced technology and user-centric design, the **Anyone Relay** offers a reliable solution for navigating the digital realm with confidence.

<div align="left"><figure><img src="/files/X3HnmvWksmdhH2J1poBv" alt="" width="375"><figcaption></figcaption></figure></div>

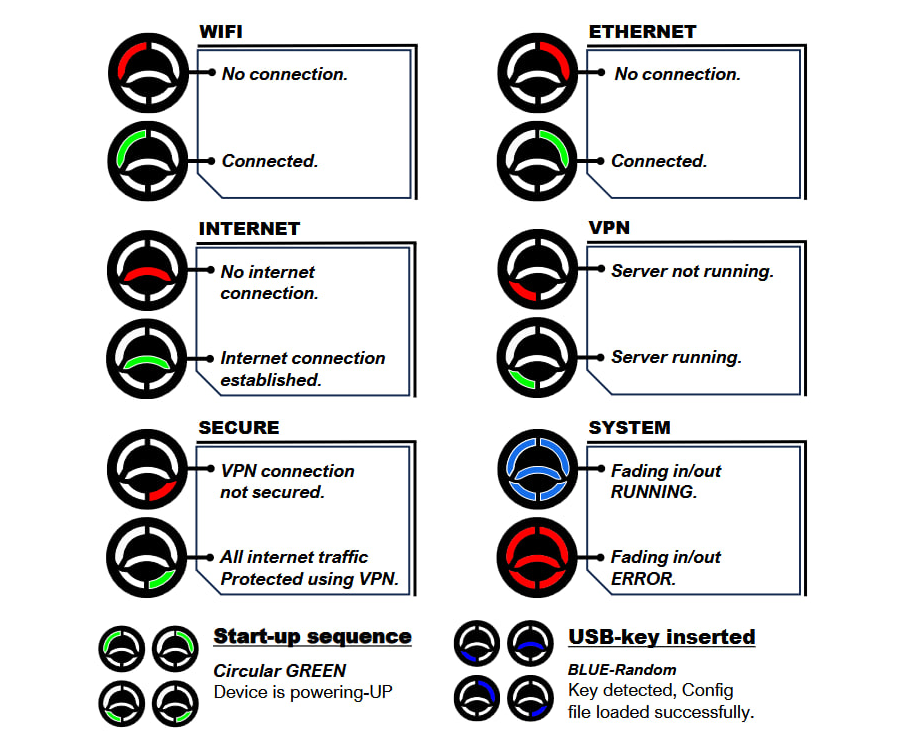

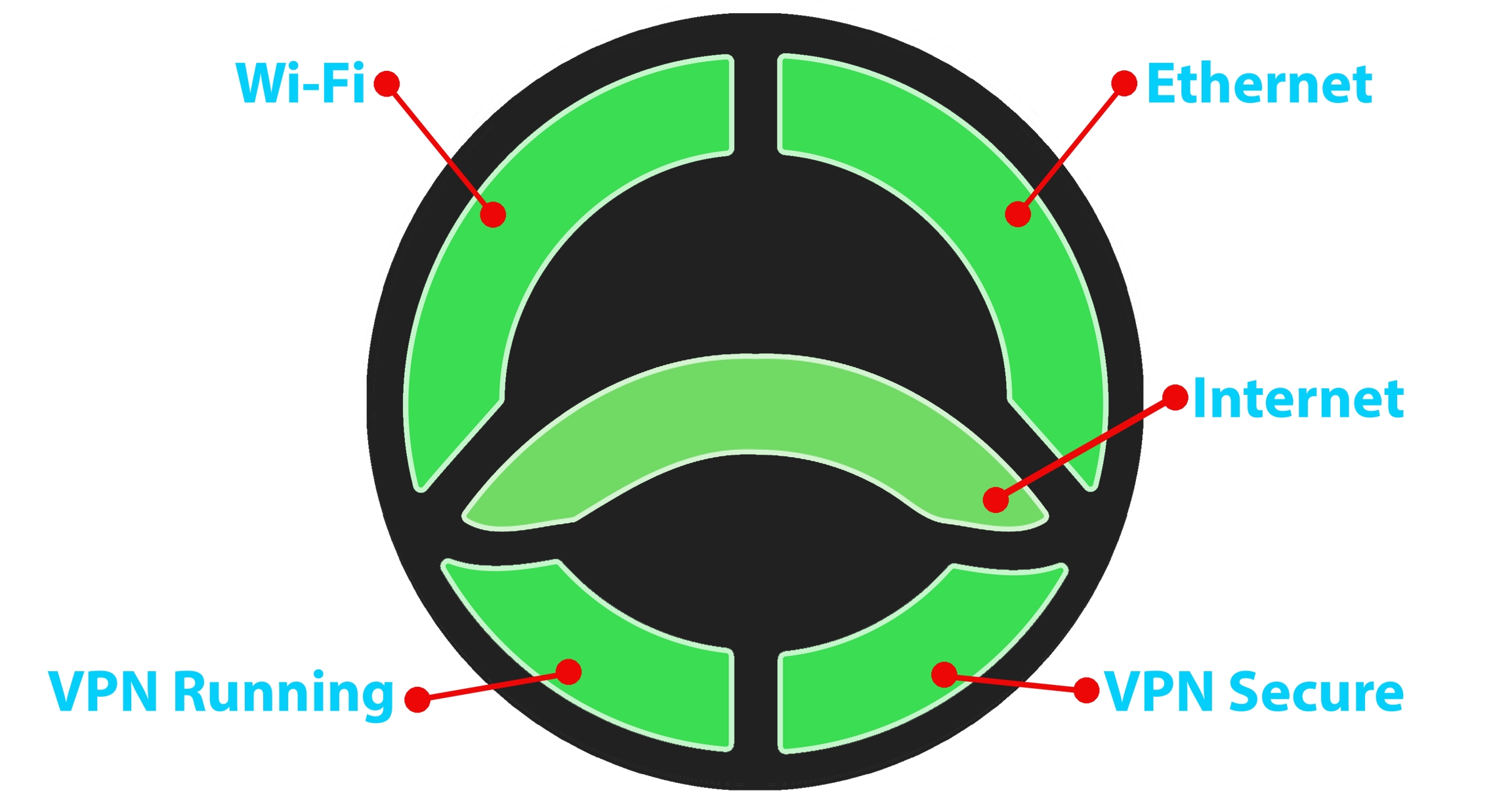

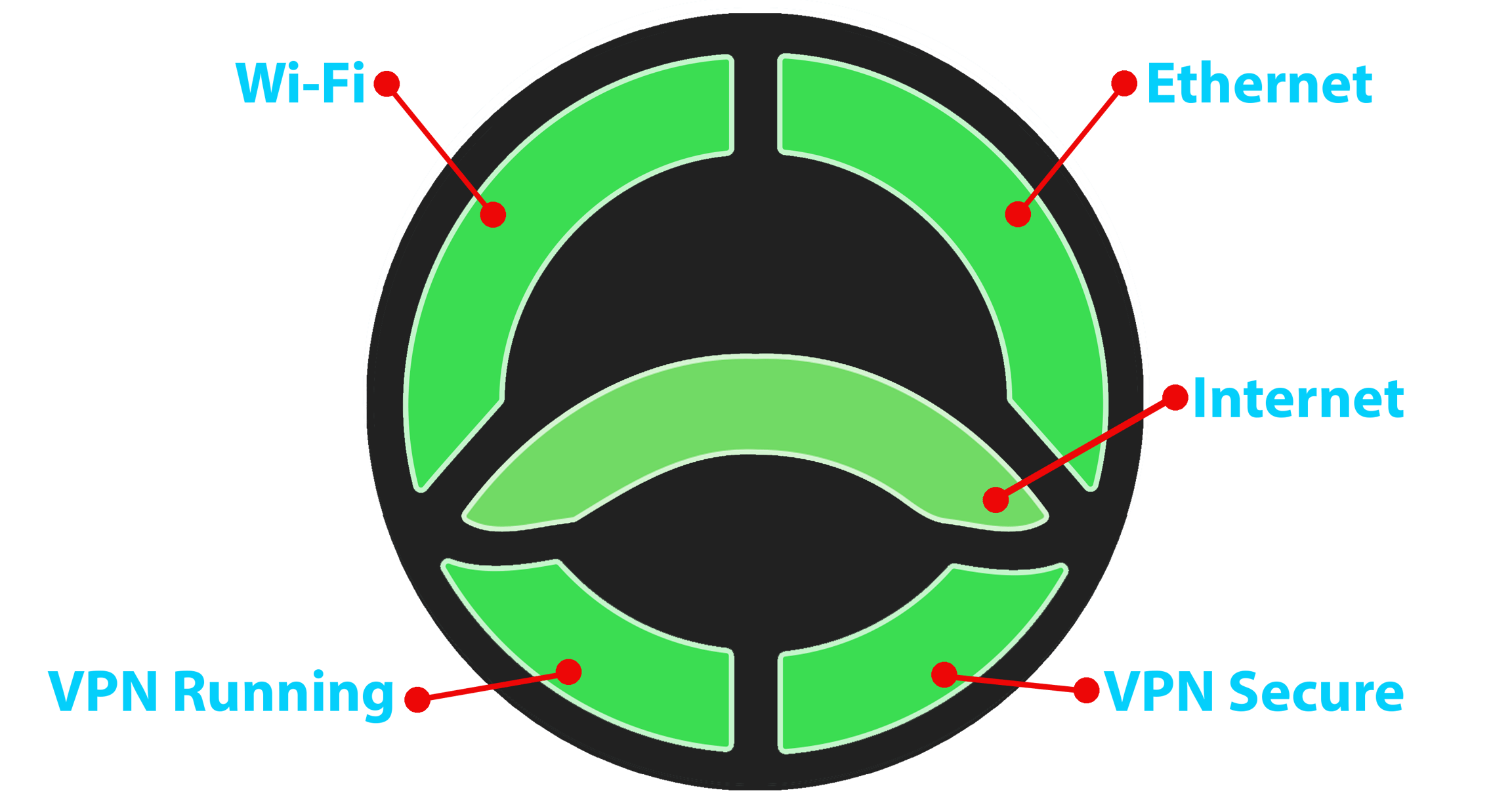

### Light indicators <a href="#light-indicators" id="light-indicators"></a>

<figure><img src="/files/axx64eUHCGWTJFrKBef4" alt="" width="563"><figcaption></figcaption></figure>

<figure><img src="/files/8JtdqD7F3ArWQW0Rkyak" alt=""><figcaption></figcaption></figure>

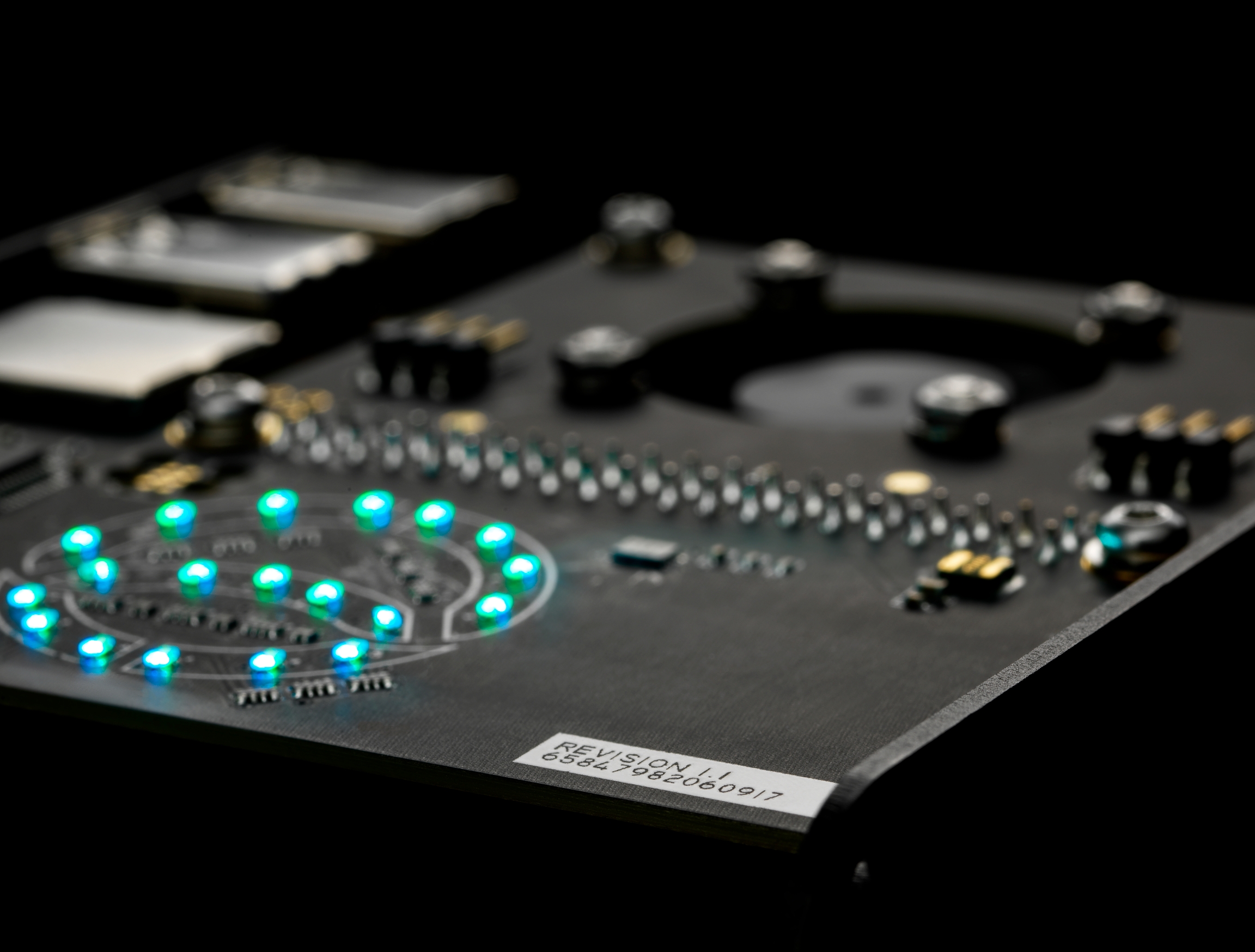

### Internal Components

<figure><img src="/files/vbJ2Sz0WB6229cnwDzh2" alt=""><figcaption></figcaption></figure>
